DPX系列單級旋片真空泵
功????率：0.55～18.5kW
氣????量：抽速：16-750m3/h
極 限 壓 力：0.5mbar
訂購熱線: 400 777 0802

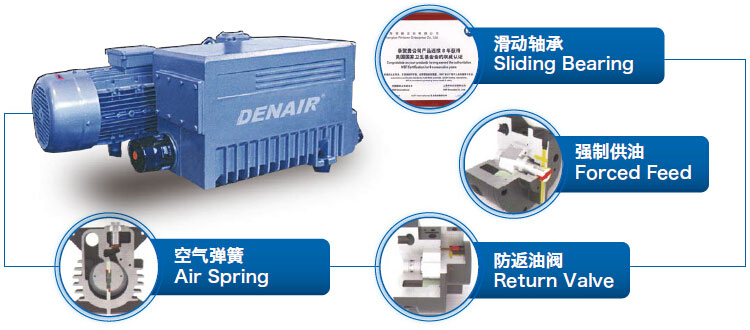

DPX系列單級旋片泵性能優勢：
●材質優質、操作維護簡易/The material quality, simple operation and maintenance
●工藝先進、耐久高、運行費用低/Advanced technology, high durability, low operating cost
●節能環保，結構緊湊輕便/Energy conservation and environmental protection, the structure iscompact and light
●排氣潔凈無油煙/Clean exhaust lampblack
●采用無彈簧旋片，實現低噪音、低震動/No spring, low noise, low vibration
●采用內置油逆止閥，實現泵無反油現象/Pump is realized by using the built-in non-return valve oil, without the phenomenon of oil
●采用內置油泵強制供油，實現泵在大氣壓以下長時間連續穩定運行/The pump is realized by using the built-in pump forced feed, continuous and stable operation under atmospheric pressure for a long time
|
型 號 Model |
DPX-10 |
DPX-16 |
DPX-21 |
DPX-40 |
DPX-63 |
DPX-100 |
DPX-160 |
DPX-200 |
DPX-250 |
DPX-300 |
DPX-630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 抽速 m3/h | 10 | 16 | 20 | 40 | 63 | 100 | 160 | 200 | 250 | 300 | 630 |
| 極限壓力 | 2 | 2 | 1 | 0.5 | 0.5 | 0 | 0.5 | 0.5 | 0.5 | 0.5 | 0.1 |
| 電機功率（KW） | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2/3.0 | 4 | 4.0/5.5 | 5 | 5.5/7.5 | 15 |
| 轉速 Speed | 2800 | 2800 | 2800 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 825 |
|
最大水蒸氣抽除量 Kg/h |
* | * | 0.4 | 0.7 | 1 | 1.5 | 2.5 | 4 | 4 | 4.5 | 26 |
|
噪音 Noise （dB） |
62 | 63 | 64 | 64 | 65 | 67 | 72 | 74 | 7 | 75 | 75 |
| 吸氣口徑（Inch） | G1/2″ | G1/2″ | G1/2″ | G1 1/4″ | G1 1/4″ | G1 1/4″ | G2″ | G2″ | G2″ | G2″ | DN100 |
|
重量 Weight （kg） |
16 | 16 | 19 | 43 | 49 | 69 | 142 | 145 | 190 | 212 | 660 |
|
外形尺寸 （L*W*H）mm |
308*215 *207 |
308*215 *207 |
421*232 *218 |
635*286 *266 |
605*308 *280 |
710*405 *290 |
761*495 *411 |
795*495 *411 |
965*585 *411 |
1010*585 *411 |
1488*888 *752 |
單級旋片真空泵性能曲線：
說明：
德耐爾對產品不斷改進，保有設計變更權，如有更改，恕不另行通知
DPX系列單級旋片泵應用領域：
●真空結晶，蒸餾，注入，預冷/Crystallization, vacuum distillation, injection, precooling
●真空過濾，罐裝，壓縮/Vacuum filter, canned, compression
●真空鍍膜及工業爐作為前級泵及預抽泵/Vacuum coating and the industrial furnace as the backing pump and drainage pump
●粉體物料或液體的真空輸送，收集/Powder material or liquid vacuum conveying, collection
●真空包裝及食品加工工藝/Vacuum packaging and food processing technology
●熱成型（吸塑，壓空，發泡成型）/Thermoforming (blister, pressure air and foam molding)
●真空除氣，脫泡，浸滲，濃縮，干燥/The vacuum degassing, deaeration, impregnation, concentration, drying
●真空吸附，夾具，吊具，吸盤/Vacuum adsorption, fixture, spreader, chuck/div>
●真空壓合，定型，貼膜/Vacuum pressure, finalize the design, the paster
●工廠，醫院，實驗室的中央真空系統/Factory, hospital, laboratory, the central vacuum system
●和其他類型真空泵組合成特殊用途的真空機組/And other types of vacuum pump, vacuum unit of the special purposes
